Technical Specifications
| Code | IB-NS-W73-DB24xxx-18W-yy-2323 (xxx: 2700K: 927, 3000K: 930, 4000K: 940; yy: Beam angle 15°: 15, Beam angle 25°: 25, Beam angle 30°: 30, Beam angle 45°: 45, Beam angle 60°: 60) |
|---|---|
| Electronic data | |
| Input voltage | 24VDC |
| Rated Power | 18W/m |
| Optical / Photometric | |
| LED type | SMD 3030 |
| LED Qty/m | 28 LEDs/m |
| Lumen / meter @ 2700K | 1450 lm |
| Lumen / meter @ 3000K | 1530 lm |
| Lumen / meter @ 4000K | 1600 lm |
| CCT | 2700K / 3000K / 4000K |
| CRI | ≥ 90 |
| SDCM | < 3 |
| Beam angle | 15° / 25° / 30° / 45° / 60° |
| Mechanical | |

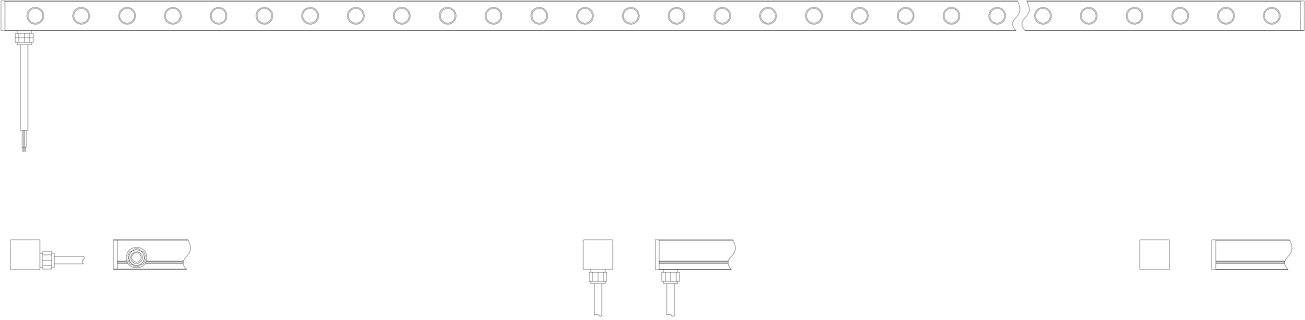

| Dimension / reel (L*W*H) | 50000*23*23mm |
| Housing material | Silicone |
| Housing color | White |
| Ingress protection | IP67 |
| Cutting length | 250mm |
| Others | |
| Rated lifetime | 50,000 hrs |
| Operating Ambient | 20~45°C |
| Certification | RoHS, CE, UL |
Technical Specifications
| Code | IB-NS-B73-DB24xxx-18W-yy-2323 (xxx: 2700K: 927, 3000K: 930, 4000K: 940; yy: Beam angle 15°: 15, Beam angle 25°: 25, Beam angle 30°: 30, Beam angle 45°: 45, Beam angle 60°: 60) |
|---|---|
| Electronic data | |
| Input voltage | 24VDC |
| Rated Power | 18W/m |
| Optical / Photometric | |
| LED type | SMD 3030 |
| LED Qty/m | 28 LEDs/m |
| Lumen / meter @ 2700K | 1300 lm |
| Lumen / meter @ 3000K | 1370 lm |
| Lumen / meter @ 4000K | 1440lm |
| CCT | 2700K / 3000K / 4000K |
| CRI | ≥ 90 |
| SDCM | < 3 |
| Beam angle | 15° / 25° / 30° / 45° / 60° |
| Mechanical | |
| Dimension / reel (L*W*H) | 50000*23*23mm |
| Housing material | Silicone |
| Housing color | Black |
| Ingress protection | IP67 |
| Cutting length | 250mm |
| Others | |
| Rated lifetime | 50,000 hrs |
| Operating Ambient | 20~45°C |
| Certification | RoHS, CE, UL |
Technical Specifications
| Release Date | Issuance of Category |
|---|---|
| 2025.10.01 The 1st. Version |
