Technical Specifications
| Code | IB-NS-0ED-SB24xxx-9.6W-0714 (xxx: 2700K: 927, 3000K: 930, 4000K: 940, 6000K: 960) |
|---|---|
| Electronic data | |
| Input voltage | 24VDC |
| Rated Power | 9.6W/m |
| Optical / Photometric | |
| LED type | SMD 2835 |
| LED Qty/m | 140 LEDs/m |
| Lumen / meter @ 2700K | 367 lm |
| Lumen / meter @ 3000K | 397 lm |
| Lumen / meter @ 4000K | 432 lm |
| Lumen / meter @ 6000K | 432 lm |
| CCT | 2700K / 3000K / 4000K / 6000K |
| CRI | ≥ 90 |
| SDCM | ≤ 3 |
| Beam angle | 135° |
| Mechanical | |

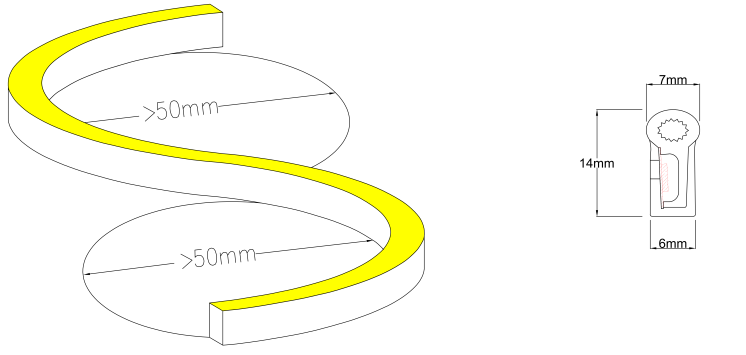

| Dimension / reel (L*W*H) | 5000*7*14mm |
| Housing material | Silicone |
| Housing color | White |
| Ingress protection | IP67 |
| Cutting length | Free-cutting to be any length |
| Others | |
| Rated lifetime | 50,000 hrs |
| Operating Ambient | 20~45°C |
| Certification | RoHS, CE, UL |
Technical Specifications
| Pictures | Description | Quantity |
|---|
Technical Specifications
| Release Date | Issuance of Category |
|---|---|
| 2026.01.01 The 1st. Version |
