Technical Specifications

Code IB-FCOBxxx-24V-10W-IP20 (XXX: 2700K: 927, 3000K: 930, 4000K: 940, 5000K: 950, 6500K: 965)
Electronic data
Input voltage 24VDC
Rated Power 10W/m
Optical / Photometric
Light Source COB (Chip On Board)
Chip Qty/m 384chips/M
Lumen / meter @ 2700K 860 lm
Lumen / meter @ 3000K 900 lm
Lumen / meter @ 4000K 1000 lm
Lumen / meter @ 5000K 1010 lm
Lumen / meter @ 6500K 1030 lm
CCT 2700K / 3000K / 4000K / 5000K / 6500K
CRI ≥ 90
SDCM ANSI Norm, 3 step in 1 bin

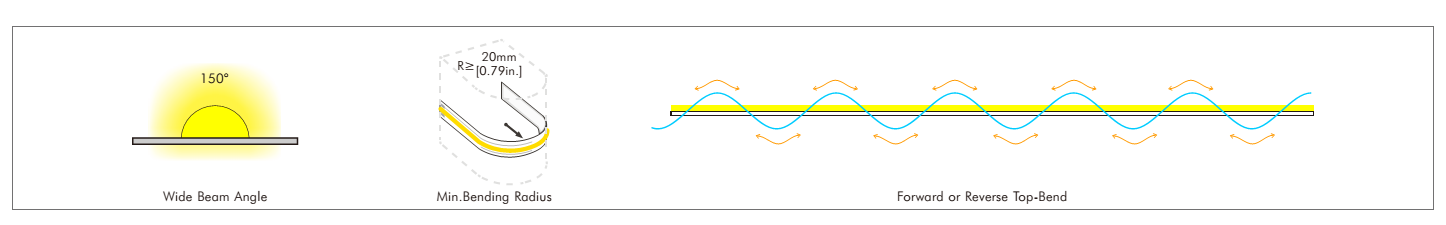

Beam angle 150°
Mechanical

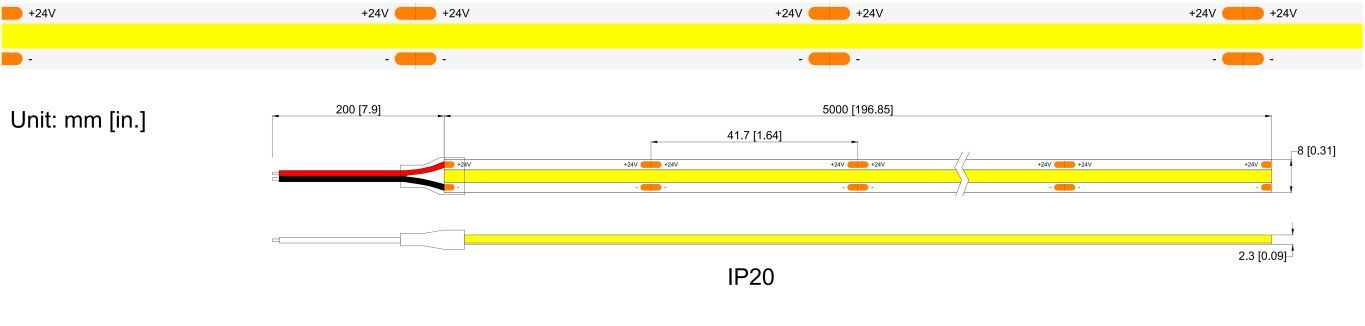

Dimension / reel (L*W*H) 5000*8*2.3mm
Housing material Silicone
Ingress protection IP20
Cutting length 41.7mm
Others
Rated lifetime 50,000 hrs
Operating Ambient 20~45°C
Certification RoHS, CE, UL

Technical Specifications

Code IB-FCOBxxx-24V-10W-IP67 (XXX: 2700K: 927, 3000K: 930, 4000K: 940, 5000K: 950, 6500K: 965)
Electronic data
Input voltage 24VDC
Rated Power 10W/m
Optical / Photometric
Light Source COB (Chip On Board)
Chip Qty/m 384chips/M
Lumen / meter @ 2700K 820 lm
Lumen / meter @ 3000K 860 lm
Lumen / meter @ 4000K 950 lm
Lumen / meter @ 5000K 960 lm
Lumen / meter @ 6500K 980 lm
CCT 2700K / 3000K / 4000K / 5000K / 6500K
CRI ≥ 90
SDCM ANSI Norm, 3 step in 1 bin
Beam angle 150°
Mechanical
Dimension / reel (L*W*H) 5000*10*4mm
Housing material Silicone
Ingress protection IP67
Cutting length 41.7mm
Others
Rated lifetime 50,000 hrs
Operating Ambient 20~45°C
Certification RoHS, CE, UL

Technical Specifications

Release Date Issuance of Category
2025.07.01 The 1st. Version
2025.07.28 The 2nd. Version
