Technical Specifications

Code IB-NS-0CC-SB24xxx-9W-0612 (xxx: 2700K: 927, 3000K: 930, 4000K: 940, 6000K: 960)
Electronic data
Input voltage 24VDC
Rated Power 9W/m
Optical / Photometric
LED type SMD 2835
LED Qty/m 120 LEDs/m
Lumen / meter @ 2700K 220 lm
Lumen / meter @ 3000K 230 lm
Lumen / meter @ 4000K 240lm
Lumen / meter @ 6000K 240lm
CCT 2700K / 3000K / 4000K / 6000K
CRI ≥ 90
SDCM < 3
Beam angle 120°
Mechanical

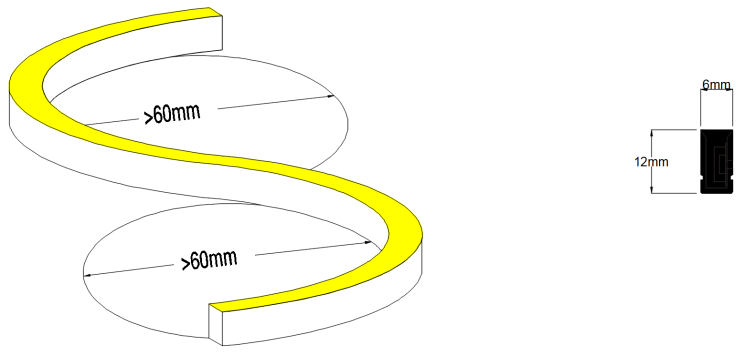

Dimension / reel (L*W*H) 5000*6*12mm
Housing material Silicone
Housing color White
Ingress protection IP67
Cutting length Free-cutting to be any length
Others
Rated lifetime 50,000 hrs
Operating Ambient 20~45°C
Certification RoHS, CE, UL

Technical Specifications

Code IB-NS-0CC-SB24xxx-6W-0612 (xxx: 2700K: 927, 3000K: 930, 4000K: 940, 6000K: 960)
Electronic data
Input voltage 24VDC
Rated Power 6W/m
Optical / Photometric
LED type SMD 2835
LED Qty/m 120 LEDs/m
Lumen / meter @ 2700K 150 lm
Lumen / meter @ 3000K 160 lm
Lumen / meter @ 4000K 170lm
Lumen / meter @ 6000K 170lm
CCT 2700K / 3000K / 4000K / 6000K
CRI ≥ 90
SDCM < 3
Beam angle 120°
Mechanical
Dimension / reel (L*W*H) 5000*6*12mm
Housing material Silicone
Housing color White
Ingress protection IP67
Cutting length Free-cutting to be any length
Others
Rated lifetime 50,000 hrs
Operating Ambient 20~45°C
Certification RoHS, CE, UL

Technical Specifications

Release Date Issuance of Category
2025.10.01 The 1st. Version
