Technical Specifications

Code IB-NS-6DTB24xxx-10-2020SA (xxx: 2700K: 927, 3000K: 930, 4000K: 940, 6000K: 960)
Electronic data
Input voltage 24VDC
Rated Power 9.6W/m
Optical / Photometric
LED type SMD 2835
LED Qty/m 120 LEDs/m
Lumen / meter @ 2700K 380 lm
Lumen / meter @ 3000K 390 lm
Lumen / meter @ 4000K 420 lm
Lumen / meter @ 6000K 410 lm
CCT 2700K / 3000K / 4000K / 6000K
CRI ≥ 90
SDCM < 3
Beam angle 120°
Mechanical

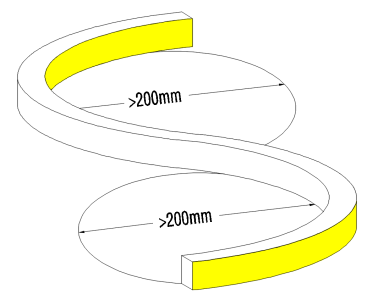

Style Top-bend
Dimension / reel (L*W*H) 5000*20*20mm
Housing material Silicone
Housing color White
Ingress protection IP67
Cutting length 50mm
Others
Rated lifetime 50,000 hrs
Operating Ambient Ta (working): -25-100°C [ -13-212°F] (Sauna room is usually ≤85°C[185℉] and is occasionally 85-100°C [185-212°F], Ice room is usually -10-0°C [ 14-32°F] Tstg (storage): -20~60°C [-4~140°F].
Certification RoHS, CE, UL

Technical Specifications

Code IB-NS-CDSB24xxx-10-1020SA (xxx: 2700K: 927, 3000K: 930, 4000K: 940, 6000K: 960)
Electronic data
Input voltage 24VDC
Rated Power 9.6W/m
Optical / Photometric
LED type SMD 2835
LED Qty/m 120 LEDs/m
Lumen / meter @ 2700K 260 lm
Lumen / meter @ 3000K 270 lm
Lumen / meter @ 4000K 290 lm
Lumen / meter @ 6000K 284 lm
CCT 2700K / 3000K / 4000K / 6000K
CRI ≥ 90
SDCM < 3
Beam angle 120°
Mechanical

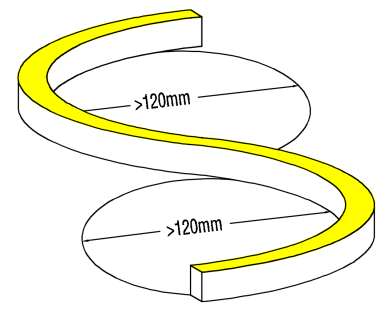

Style Side-bend
Dimension / reel (L*W*H) 5000*10*20mm
Housing material Silicone
Housing color White
Ingress protection IP67
Cutting length Free-cutting to be any length
Others
Rated lifetime 50,000 hrs
Operating Ambient Ta (working): -25-100°C [ -13-212°F] (Sauna room is usually ≤85°C[185℉] and is occasionally 85-100°C [185-212°F], Ice room is usually -10-0°C [ 14-32°F] Tstg (storage): -20~60°C [-4~140°F].
Certification RoHS, CE, UL

Technical Specifications

Release Date Issuance of Category
2025.10.01 The 1st. Version
